Unlock Peak Performance: How Automatic Doors Revolutionize Industrial Efficiency

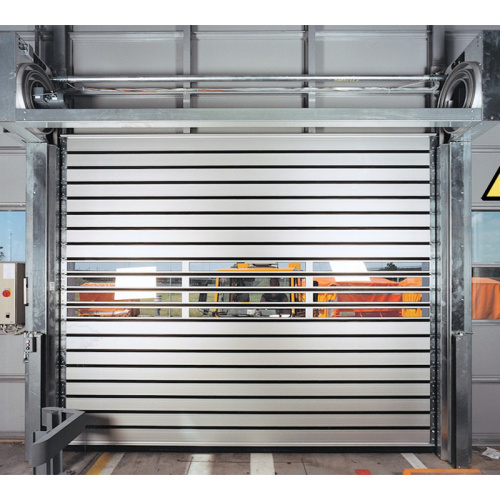

What are Spiral High-Speed Doors?

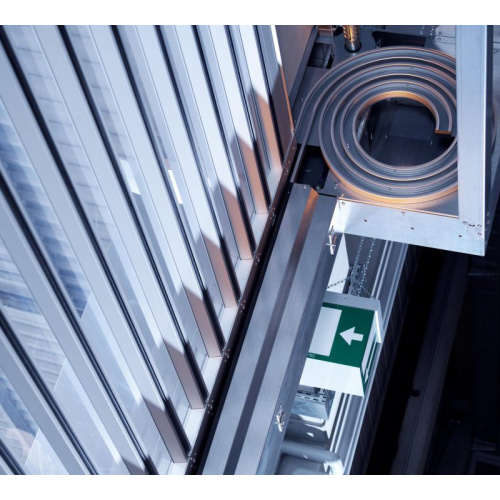

Spiral high-speed doors represent the pinnacle of modern industrial access solutions. Unlike traditional doors, these innovative automatic doors utilize a unique vertical rolling mechanism where interlocking slats coil tightly into a compact drum above the opening. Engineered for extreme performance, automatic doors like Hongfa's spiral models achieve speeds of 1.2m/s to 2.5m/s – perfect for environments demanding rapid, frequent access while maintaining critical environmental barriers.
Engineered Excellence: Core Features
Ultra-Fast & Adjustable: 1.2m/s - 2.5m/s speed minimizes air exchange and boosts workflow efficiency.
Superior Insulation: 40mm thick panels feature 0.7mm aluminum skins sandwiching high-density polyurethane foam (R-value: ~10.5), slashing energy costs by up to 30%.
Unmatched Strength: Reinforced 220mm-wide slats withstand impacts up to 80km/h winds (ASTM E330 tested) and 150,000+ cycles.
Precision Sealing: Full-perimeter EPDM gaskets achieve < 0.5 m³/m·h air leakage (EN 1634 certified).
Key Benefits of High-Speed Automatic Doors
Energy Conservation: Reduce HVAC load by 25%+ with best-in-class thermal breaks.
Operational Efficiency: 3x faster cycle times vs. standard roll-up doors increase throughput.
Enhanced Security: Interlocking slats and tamper-resistant designs deter unauthorized access.
Durability & Low Maintenance: Aircraft-grade aluminum and stainless steel hardware ensure 10+ year lifespans.
Hygienic & Eco-Friendly: NSF-compliant surfaces and recyclable materials support clean operations.
Where Automatic Doors Deliver Maximum Impact
Perishable Warehousing: Minimize temperature fluctuations in cold storage (-30°C to +70°C). Our PVC Zipper Door Custom Cold Room Door provides an airtight alternative for ultra-low temp zones.
Automotive Manufacturing: Withstand constant forklift traffic (impact ratings: IK10) while isolating paint booths from particulates.
Pharmaceutical Cleanrooms: Achieve ISO Class 5/7 compliance with rapid closures that maintain positive pressure.
Logistics Hubs: Hongfa’s Spiral High-speed door accelerates dock operations with 2-second open/close times, reducing energy loss by 80% vs. conventional doors.
Food Processing: Easy-clean surfaces and IP65 sealing options prevent bacterial ingress.
How Spiral High-Speed Doors Operate
Activation: Motion sensors or push buttons trigger the door controller.
Deployment: Slats unwind vertically from the overhead drum within 1-2 seconds.
Sealing: Guides ensure perfect alignment while bottom seals engage the floor.
Retraction: After a preset delay, the door rewinds into its compact drum.
Safety sensors (e.g., photocells, edge guards) halt operation if obstructions are detected.
Hongfa Automatic Doors: Your FAQs Answered
Q: How often do Hongfa automatic doors require maintenance?
A: Minimal upkeep is key! Bi-annual inspections (lubrication, sensor checks) ensure peak performance. Our high-speed door systems feature self-diagnostic controls alerting you to potential issues.
Q: Can doors be customized for oversized openings?
A: Absolutely. As a leading speed door manufacturer, Hongfa engineers custom solutions up to 12m wide x 10m high. Options include vision panels, fire ratings (up to EI120), and hurricane reinforcement.
Q: What’s the ROI on insulated high-speed doors?
A: Facilities typically recoup costs in <2 years via energy savings. Example: A 4m x 4m opening using 40mm panels can prevent ~15,000 kWh/year in heat loss
Q: Are these doors safe for high-traffic areas?
A: Yes. Hongfa automatic doors integrate Type 4 safety light curtains (EN 12453), breakaway bottom edges (<150N release force), and emergency manual releases.
Q: What’s the expected service life?
A: With proper maintenance, Hongfa aluminum High Speed Doors operate reliably for 500,000+ cycles – equivalent to 15+ years in demanding 24/7 environments.
